Coil Springs vs Leaf Springs: Which Suits Your 4WD?

If you're upgrading your 4WD's suspension for touring, towing or a trip up the Cape, one of the first decisions you'll run into is whether to stick with (or move to) coil springs or leaf springs. Both are common across the Australian 4WD fleet, and both do the same basic job — supporting the vehicle's weight and absorbing bumps — but they go about it in different ways, with different trade-offs for comfort, load carrying and long-term reliability.

This isn't just an academic question. Get the spring type and rating wrong and you can end up with a 4WD that sags under a full camping load, sits unevenly with a bullbar and winch up front, or rides so harshly around town that every pothole becomes a jolt through the cabin. This guide breaks down how each spring type works, where each one earns its keep on Australian roads and tracks, and what to think about before you buy replacement or upgraded springs.

How Leaf Spring and Coil Spring Suspension Work

Both spring types store and release energy to cushion the vehicle over bumps, but the engineering behind them is quite different.

Leaf Springs

A leaf spring is a stack of curved metal plates (leaves) clamped together, usually mounted longitudinally between the chassis and a live (solid) rear axle. The main leaf pack handles the vehicle's everyday weight, while many 4WD utes and wagons add extra "helper" or overload leaves that only come into play once a heavier load — camper trailer tow ball weight, a canopy full of gear, or a GVM upgrade — compresses the springs further. This two-stage design is a big part of why leaf springs remain so common on load-carrying vehicles.

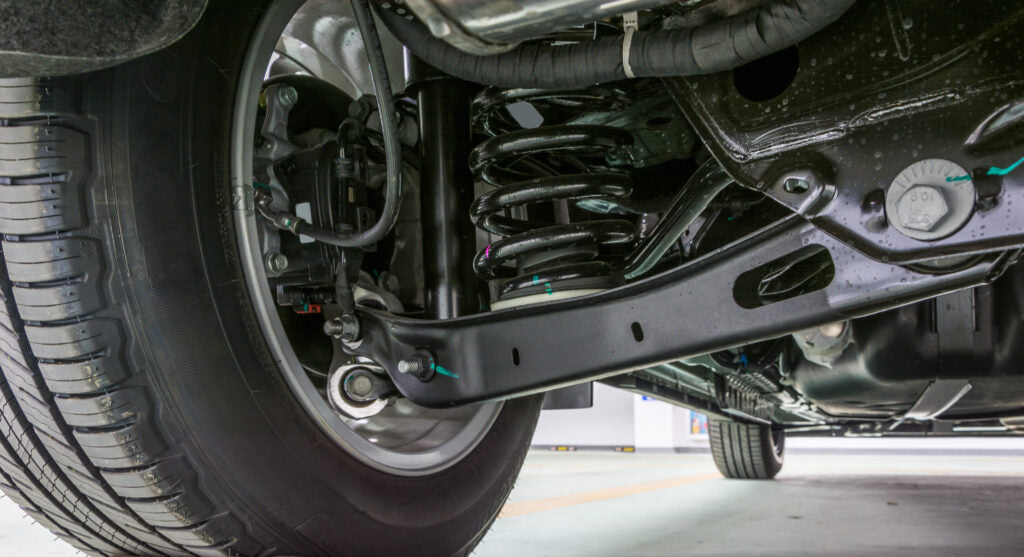

Coil Springs

A coil spring is a single, tightly wound length of spring steel. Because a coil spring only stores and releases energy along its own axis, without leaves sliding against each other, it moves more freely. Most modern 4WD wagons run coil springs at the front, and many now run them at the rear too, particularly on independent or semi-independent rear suspension. Coil springs are usually paired with radius arms, trailing arms or control arms to locate the axle, since the spring itself doesn't control fore-aft or lateral movement the way a leaf spring's shape does.

Ride Comfort and On-Road Manners

Coil springs generally win on comfort. Because there's no leaf-on-leaf friction (known as "stiction") in the way the spring compresses, a coil spring responds more smoothly and consistently to small bumps and corrugations. That's a big part of why most passenger-focused 4WD wagons moved to coil suspension over the past few decades.

Leaf springs can feel firmer and a little busier over rough surfaces, especially when unladen, because the friction between the leaves needs a certain amount of force to overcome before the spring pack moves freely. Once loaded up towards their rated capacity, however, that harshness tends to settle down — which is one reason leaf-sprung utes often ride better with some weight in the tray than empty.

Load Carrying, GVM and Getting the Spring Rate Right

This is where the comparison gets more nuanced, because it's less about "leaf vs coil" and more about matching the spring rate to what you actually carry.

• Standard-duty springs suit a 4WD that's rarely loaded beyond a few passengers and light gear.
• Medium-duty springs suit occasional touring with a roof rack, drawers or a bullbar and winch.
• Heavy-duty or constant-load springs suit vehicles that are regularly loaded close to GVM — think canopy, dual battery setup, water and fuel, and a loaded camper trailer on the tow ball.

Leaf springs handle this with their multi-stage leaf pack and add-on overload leaves, which is why they've traditionally been favoured on load-carrying utes and older 4WDs. Coil-sprung vehicles achieve the same result with different spring rates and, in many cases, airbags or auxiliary springs added to support heavier constant loads.

Fitting a spring rated well above what you actually carry gives a harsh, jittery ride when the vehicle is empty. Fitting one rated below your typical loaded weight leaves the suspension sagging, reduces ground clearance and can throw out your headlight aim and wheel alignment. If you're unsure what your fully loaded weight actually is, get the vehicle weighed at a public weighbridge before choosing a spring rate — it's a cheap way to avoid an expensive mistake.

Towing and Axle Control

For anyone towing a caravan, camper or box trailer, axle behaviour under load matters as much as ride comfort. A live axle on leaf springs keeps a consistent camber angle as the suspension compresses, which some drivers find reassuring under a heavy tow ball download over long distances. Live-axle, leaf-sprung set-ups are also generally rated to carry higher axle loads than an equivalent independent, coil-sprung arrangement, which is part of why leaf springs remain common on heavier-duty utes and light trucks.

Coil-sprung 4WDs can tow very capably too, but the suspension (and often the whole rear-end geometry, if it's independent) needs to be matched to the trailer's tow ball weight, and a genuine GVM or GCM upgrade may be needed for heavier combinations. Always check your vehicle's tow rating, GVM and GCM before adding weight, and be honest about how the vehicle is loaded in daily use, not just on a good day.

Durability and Repairability on Remote Tracks

Out on a remote track, hundreds of kilometres from the nearest town, reliability and repairability start to matter more than outright comfort. Leaf springs have an old-school advantage here: a cracked or broken leaf can often be temporarily strapped, clamped or even welded well enough to limp on to help, whereas a snapped coil spring generally leaves the vehicle sitting on the bump stop with limited options for a bush fix. This is one reason leaf springs are still preferred by some remote-area and commercial 4WD operators, even though coil suspension has taken over in most mainstream wagons.

In everyday Australian conditions — heat, dust, corrugations and the odd pothole-riddled backroad — both spring types can give long service when they're matched to the vehicle's load and inspected regularly for cracks, sagging, worn bushes and corrosion, particularly if the vehicle sees coastal or salt-affected driving.

Articulation and Off-Road Capability

Wheel articulation — how far a wheel can droop or compress independently of the others — affects how well a 4WD keeps all four tyres in contact with uneven ground. Coil springs generally allow more suspension travel and articulation for a given ride height, which is why serious off-road wagons and many upgraded touring vehicles run coil suspension front and rear. Leaf springs can still articulate well, especially with longer leaf packs or a well-set-up leaf and shackle combination, but they typically can't match a well-designed coil and control-arm set-up for outright flex.

For most owners doing typical Australian touring — corrugated dirt roads, beach driving, forestry tracks and the occasional rough 4WD trail — either spring type, correctly rated and in good condition, will get the job done. The difference becomes more noticeable for owners tackling serious rock crawling or technical low-range tracks where maximum articulation counts.

What Most Australian 4WDs Actually Run

In practice, plenty of 4WDs use a mix of both:

• Coil front, leaf rear — common on many popular dual-cab utes, balancing steering comfort up front with load-carrying strength at the back.
• Coil front and rear — common on 4WD wagons built primarily for touring and family use, prioritising comfort and articulation.
• Leaf front and rear — less common today, mostly seen on older 4WDs, light trucks and some heavy-duty commercial vehicles built for maximum load capacity.

Before assuming you can simply swap spring types, check what your vehicle's chassis, axle and control arm mounts are actually designed for. Converting between leaf and coil suspension is a major engineering change, not a like-for-like parts swap, and it isn't something most owners should attempt without professional advice.

Choosing Replacement or Upgraded Springs

When you're comparing options, work through these factors:

• Typical loaded weight — get it weighed rather than guessing.
• Use case — daily driver, occasional tourer, heavy off-road tourer, or dedicated tow vehicle.
• Ride height change — a modest lift can improve clearance, but bigger isn't always better for on-road handling or compliance.
• Matched components — springs, shock absorbers, bushes and, where relevant, control arms should all be rated to work together. Mismatched components are a common cause of poor ride quality after an upgrade.
• Quality and warranty — reputable manufacturers publish load ratings and are a safer bet than unbranded, unrated springs.

At Universal Auto Spares, Australian motorists can browse a range of coil and leaf springs, including leaf springs and shackle kits for load-carrying rear ends. It's worth pairing new springs with fresh shock absorbers or struts, since worn dampers will undermine even a well-matched spring, and checking suspension bushes and control arms for wear at the same time, since tired bushes can mask or mimic worn spring and shock symptoms.

Legal Height Limits When Upgrading Suspension in Australia

If you're increasing ride height as part of a spring upgrade, it's important to stay within the rules. Under the National Code of Practice for Light Vehicle Construction and Modification, raising a vehicle's suspension without engineering certification is generally limited to a set threshold, with some states allowing a larger combined height increase when suspension and tyre/wheel changes are considered together. Requirements vary by state and can change, so check with your state or territory road authority before fitting a lift, and budget for engineering certification if you're planning a larger height increase.

Common Mistakes to Avoid

• Choosing a spring rate based on the vehicle's unladen weight instead of its typical loaded weight.
• Fitting a heavy-duty or constant-load spring to a vehicle that's rarely loaded, resulting in a harsh, bouncy ride.
• Ignoring the shock absorbers when replacing springs — a spring upgrade without matched dampers rarely rides or handles well.
• Overlooking worn bushes and shackles, which can make even brand-new springs feel loose or clunky.
• Lifting a vehicle beyond legal limits without checking state requirements or budgeting for certification.

Key Takeaways

• Coil springs generally ride more comfortably and articulate further; leaf springs generally carry heavier constant loads and are easier to field-repair.
• Match the spring rate to your actual loaded weight, not the vehicle's unladen weight.
• Many 4WDs run a mix — coil front, leaf rear — to balance comfort and load capacity.
• Replace shocks, bushes and worn components alongside springs for the best result.
• Check your state's rules before increasing ride height, and consider engineering certification for larger lifts.

Frequently Asked Questions

Are coil springs better than leaf springs?

Neither is universally "better" — they suit different priorities. Coil springs tend to ride more comfortably and articulate further, while leaf springs tend to carry heavier constant loads and are simpler to repair in the field. The right choice depends on how you use your 4WD.

Can I convert my leaf-sprung 4WD to coil springs?

It's technically possible on some vehicles, but it's a significant engineering change affecting the chassis, axle location and geometry, not a simple parts swap. Speak to a qualified suspension specialist or engineer before considering it.

How do I know what spring rate my 4WD needs?

Start by getting your vehicle weighed at a public weighbridge with your typical touring or towing load on board, then match that figure against the manufacturer's published load ratings for standard, medium and heavy-duty springs.

Do leaf springs need more maintenance than coil springs?

Both need periodic inspection for cracks, sagging, corrosion and worn bushes or shackles. Leaf springs have additional wear points at the leaf-on-leaf contact surfaces and shackle bushes, so they're often greased or inspected as part of routine servicing.

Will new springs fix a sagging or uneven ride height?

Often yes, if the sagging is caused by fatigued springs, but it's worth also checking for worn shocks, bushes or a genuine load imbalance first, since these can produce similar symptoms. If you're unsure, have the suspension inspected by a qualified technician.

Final Thoughts

Whether coil or leaf springs suit your 4WD better comes down to how you actually use the vehicle — daily commuting, weekend touring, heavy towing or serious off-road work all point in slightly different directions. Take an honest look at your typical loaded weight, talk to a suspension specialist if you're planning a bigger upgrade, and make sure shocks, bushes and springs are replaced as a matched set rather than one component at a time. Explore the steering and suspension range at Universal Auto Spares, or read our guide to 4WD suspension lift kits and our comparison of shock absorbers versus struts for the next steps in planning your suspension upgrade.
