How Often Should You Change Your 4WD's Diff Oil?

Why Your 4WD's Differential Oil Works Harder Than You Think

Most 4WD owners are diligent about engine oil. Far fewer give the same attention to differential oil, even though the diffs are doing some of the hardest work on the vehicle. Every time you tow a trailer, load up for a remote trip, or push through sand, mud or a river crossing, your front and rear differentials are absorbing heat, load and contamination that a standard road car never sees.

Differential oil (also called gear oil or diff oil) lubricates the gears inside the differential housing that transfer engine power to the wheels and allow them to turn at different speeds through corners. It's a different fluid to engine oil, with a different job, and it needs its own service schedule.

This guide covers how often to change differential oil in a 4WD, the warning signs that it's overdue, why Australian conditions are particularly hard on diffs, and what's involved in a diff oil change. As always, check your owner's manual for the exact interval and specification for your specific make and model, since these vary between manufacturers.

What Differential Oil Actually Does

Inside every differential housing sits a set of gears — typically a ring gear and pinion, plus (on open diffs) smaller spider gears that let the left and right wheels spin at different speeds when cornering. These gears run under enormous point-loading, and differential oil is formulated to cope with that pressure, carry heat away from the gear teeth, and prevent metal-on-metal wear.

Many 4WDs also have a limited-slip differential (LSD) on at least one axle, which uses clutch packs to control wheel spin. LSDs need a friction modifier additive in the oil (either pre-blended or added separately) to stop the clutches from grabbing or chattering. Using the wrong oil in an LSD is a common cause of premature clutch wear.

On a dual-cab ute or wagon with a transfer case, that's a third gearbox with its own oil that also needs checking — front diff, rear diff and transfer case are three separate items, not one.

Why Australian 4WD Conditions Are Tough on Diff Oil

Differential oil doesn't wear out from age alone. It degrades from heat cycling, contamination and mechanical shear, and Australian conditions tend to accelerate all three.

Heat and Towing Load

Towing a van or trailer, hauling a loaded canopy, or crawling up steep, low-range tracks all increase the load and heat passing through the differential gears. Sustained high temperatures break down the oil's lubricating film faster than normal highway driving, which is why manufacturers generally recommend shorter intervals for vehicles used for towing or off-road work.

Dust

Corrugated outback roads and dusty tracks push fine dust towards diff housings, breathers and seals. Over time, dust that works its way past seals contaminates the oil and acts as an abrasive between the gear teeth.

Water Crossings

This is one of the biggest differences between a 4WD and a regular passenger car. A differential vents through a small breather to equalise pressure as it heats and cools. Drive a hot diff into a creek or river crossing and the sudden temperature drop can draw water in through that breather, straight into the housing. Water contamination is a common cause of premature diff failure in vehicles regularly used for touring, and it's often invisible until the fluid is checked or drained.

How Often Should You Change Diff Oil in a 4WD?

There's no single number that applies to every vehicle, because intervals depend on the manufacturer, the diff type, and how the vehicle is used. As a general guide for 4WDs, many manufacturers specify somewhere in the order of 30,000 to 40,000 km under normal conditions — noticeably more frequent than the intervals typically listed for a standard road car.

If your 4WD spends serious time towing, running heavy loads, crossing water or working corrugated tracks, it's common practice to halve that interval, or at minimum inspect the oil condition well before the standard service is due. A vehicle that's done a big remote touring trip — especially one involving deep water crossings — is worth checking regardless of when the last change was.

Always confirm the exact interval and oil specification in your owner's manual, since it varies by make, model and diff type, and don't assume the front diff, rear diff and transfer case share the same schedule.

Warning Signs Your Diff Oil Needs Attention

A few symptoms are worth acting on rather than ignoring:

• Whining or howling noise that changes with road speed, most noticeable on a constant throttle. This points to gear wear from low or degraded oil.
• Clunking on take-off or when shifting between drive and reverse, which can indicate wear in the gears or bearings.
• Vibration or shudder under acceleration or through corners, particularly on vehicles with a limited-slip differential.
• A burning smell after towing or hard off-road driving, suggesting the oil has overheated.
• Milky, cloudy or foamy oil when checked at the fill plug — a strong indicator of water contamination.
• Metal particles or a gritty texture in the oil, which points to internal gear or bearing wear.

Differential oil in good condition is usually a translucent amber or brown colour with a distinct sulphur-like smell (normal for gear oil, not a fault). Dark, gritty, or milky fluid is a sign it's overdue.

Checking Diff Oil Condition

Checking the diff is straightforward: locate the fill/level plug on the side of the housing, remove it, and check that oil sits at the bottom of the hole. Dip a clean finger or a small tool into the oil to check colour, smell and texture rather than judging by sight alone through the plug hole.

It's good practice to check diff oil condition after any significant water crossing, after a long tow, and before a remote trip — not just at the scheduled service interval. Catching contaminated oil early is far cheaper than replacing worn gears and bearings later.

Choosing the Right Differential Oil

Differential oil is specified by viscosity (commonly a heavier grade than engine oil, such as 75W-90 or 80W-90) and by API gear oil rating (such as GL-4 or GL-5). These specifications aren't interchangeable — using the wrong rating, particularly on a diff with brass or bronze synchro components, can cause damage. Always match the specification listed in your owner's manual.

If your 4WD has a limited-slip differential, confirm whether your chosen oil already includes an LSD friction modifier or whether it needs to be added separately. Getting this wrong is a common cause of clutch chatter or a diff that grabs unevenly through low-speed turns.

At Universal Auto Spares, Australian 4WD owners can browse our gear and differential oils collection to find gear oil suited to their vehicle, and check the wider oils and fluids range for engine, transmission and transfer case options.

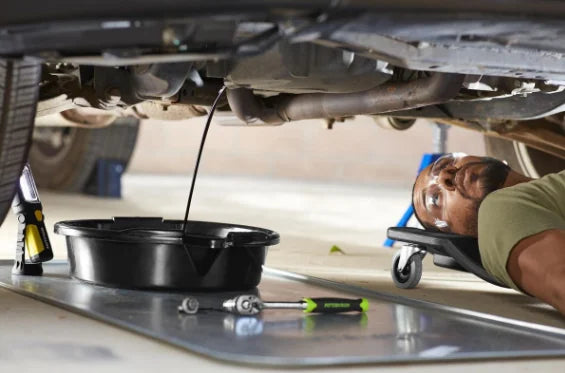

What's Involved in a DIY Diff Oil Change

A diff oil change is a manageable DIY job for anyone comfortable with basic maintenance, but it has a few quirks compared to an engine oil change:

1. Warm the vehicle first. Warm oil drains more completely and carries contaminants out with it, but let the diff cool enough to avoid burns before working on it.
2. Support the vehicle safely. Use rated jack stands on a level, hard surface — never work under a vehicle supported only by a jack.
3. Remove the fill plug first. If it's seized, you don't want to drain the oil only to find you can't refill it.
4. Drain the old oil into a suitable container and inspect it for metal particles, water or an unusual colour before disposing of it responsibly at an approved recycling point.
5. Refill using a pump. Unlike engine oil, diff oil can't simply be poured in from above — most housings need a pump or squeeze bottle to push oil in through the side-mounted fill hole until it reaches the bottom of the plug thread.
6. Work in clean conditions. Differential gears are unforgiving of contamination, so avoid doing this job in windy, dusty conditions where debris can enter the housing.

For the job itself, a funnel or fluid transfer pump and a drain pan make the process considerably easier. Browse our oil drain pans and containers for suitable options.

When to See a Professional

Some situations are better left to a qualified mechanic:

• Persistent whining, clunking or vibration that doesn't resolve after an oil change, which can indicate worn bearings or gears needing inspection and possible replacement.
• A locking or limited-slip differential behaving unpredictably.
• Any diff that's been submerged in deep water and may have ingested water beyond what a simple oil change addresses.
• Uncertainty about oil specification, LSD additive requirements, or correct fill level for your specific vehicle.

Differential and drivetrain work is safety-critical, so if in doubt, have it assessed by a qualified mechanic rather than guessing.

Key Takeaways

• Differential oil lubricates the gears that transfer power to your wheels, and it's a separate service item from engine oil.
• Front diff, rear diff and transfer case (where fitted) each have their own oil and their own service needs.
• Australian conditions — heat, towing load, dust and water crossings — accelerate diff oil breakdown compared to normal road use.
• Many 4WD manufacturers specify diff oil changes in the order of 30,000–40,000 km, often shorter for vehicles used for towing or off-roading. Always check your owner's manual.
• Whining noise, vibration, a burning smell or milky oil are all signs it's time to check the diff.
• Check diff oil condition after major water crossings or long tows, not just at scheduled intervals.

Frequently Asked Questions

How do I know if my diff oil needs changing?

Look and listen for whining or howling noise that changes with speed, vibration under load, a burning smell after towing, or oil that looks dark, gritty or milky when checked at the fill plug. Any of these warrant a check.

How often should you change 4WD diff oil in Australia?

It varies by manufacturer, but many 4WDs call for a change somewhere in the 30,000–40,000 km range under normal use, often sooner if the vehicle regularly tows, works off-road or crosses water. Check your owner's manual for the exact figure for your vehicle.

Can water get into my differential during a river crossing?

Yes. A hot differential that enters cold water can draw water in through its breather as it cools and the internal pressure drops. This is a common cause of contaminated diff oil in vehicles used for remote touring, and it's worth checking the oil after any significant crossing.

Do the front and rear diffs need the same oil?

Not necessarily. Many 4WDs use different oil specifications for the front diff, rear diff and transfer case, and a limited-slip diff may need a friction modifier additive that an open diff doesn't. Always check the specification for each unit rather than assuming they match.

Can I change diff oil myself?

It's a manageable DIY job for someone comfortable with basic maintenance, though it requires jack stands, a drain pan and a pump to refill through the side fill hole. If you hear ongoing noise or vibration after a change, or you're unsure of the correct specification, have it checked by a qualified mechanic.

Keep Your 4WD's Drivetrain in Good Health

Differential oil rarely gets the attention it deserves, but for a 4WD that tows, travels remote roads or crosses water, it's one of the more important fluids on the vehicle. A quick check after a big trip, and a change at the interval your manufacturer recommends, goes a long way toward avoiding an expensive gear or bearing failure down the track.
